Product Center
     Product Center     Medium voltage MOS

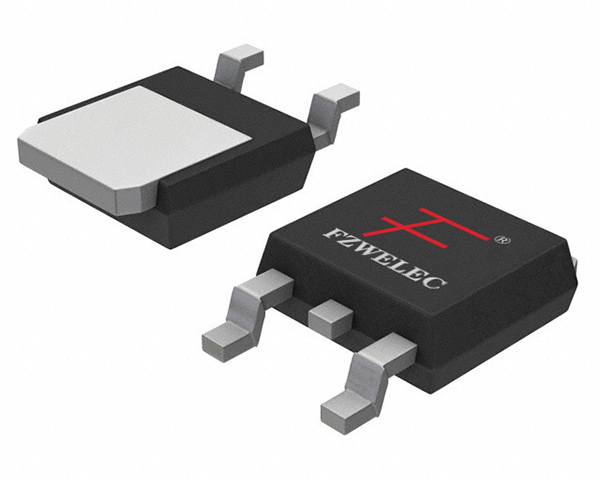

TO252
TO252

Medium voltage MOS

　　 The medium voltage MOSFET is manufactured using FZWELEC micro trench and planar process technology. The advanced technology and cell structure make the product realize the maximum power density, thereby greatly reducing the conduction loss during the current conduction process, and has low conduction resistance, superior switching performance and high avalanche breakdown tolerance. .

　　1, lower gate charge,

　　2, lower reverse transmission capacitance

　　3, faster switching speed

　　4, higher dv/dt capability

TO252
  • Part_Number
  • Package
  • Configuration
  • Type
  • ESD_Diode
  • Vds(V)
  • Vgs(+V)
  • Vth(V)
  • Rds(on)mΩmax2.5V
  • Rds(on)mΩ max4.5V
  • Rds(on)mΩ max10V
  • ID(A)
  • ~ V
  • ~ V
  • ~ V
  • ~ V
  • ~ V
  • ~ V
  • ~ V
Part_Number Package Configuration Type ESD_Diode Vds(V) Vgs(±V) Vth(V) Rds(on)mΩ max2.5V Rds(on)mΩ max4.5V Rds(on)mΩ max10V ID(A) 说明书
FE1102M TO252 Single N No 100 20 2 0 0 200 12
FE1101M TO252 Single N No 100 20 2 0 121 115 18
FE1101MC TO252 Single N No 100 20 2 0 94 91 16
FE1101N TO252 Single N No 100 20 3 0 20 9 70
FE1102N TO252 Single N No 100 20 3 0 0 18 45
FE1104N TO252 Single N No 100 20 2 0 31 30 40
FE1104NA TO252 Single N No 100 20 1 0 37 35 38
FE1104NB TO252 Single N No 100 20 1 0 34 32 40
FE1104NC TO252 Single N No 100 20 2 0 38 36 38
FE1105 TO252 Single N No 100 20 2 0 7 6 100
FE1106N TO252 Single N No 100 20 1 73 57 55 25
FE1152N TO252 Single N No 150 20 2 0 24 20 50
FE1154N TO252 Single N No 150 20 2 0 50 42 25
FE1158N TO252 Single N No 150 20 2 0 87 70 25
FE1201K TO252 Single N No 200 20 3 0 980 810 4
FE1201M TO252 Single N No 200 20 2 0 125 100 15
FE1202 TO252 Single N No 20 20 2 4 3 0 160
FE1203M TO252 Single N No 200 20 3 0 368 245 10
FE1206 TO252 Single N No 20 15 1 4 3 0 145
FE1206N TO252 Single N No 200 20 3 0 112 54 25
FE1251K TO252 Single N No 250 20 3 0 960 800 4
FE1252M TO252 Single N No 250 20 3 0 264 220 17
FE1302 TO252 Single N No 30 20 1 0 3 2 100
FE1302A TO252 Single N No 30 20 1 0 3 2 100
FE1303 TO252 Single N No 30 20 2 0 3 2 100
FE1303S TO252 Single N No 30 20 2 0 7 5 80
FE1307 TO252 Single N No 30 20 2 0 11 10 60
FE1307A TO252 Single N No 30 20 1 0 9 6 75
FE1310 TO252 Single N No 30 20 2 0 9 7 70
FE1337 TO252 Single N No 30 20 2 0 73 58 15
FE1402 TO252 Single N No 40 20 3 0 40 4 130
FE1405 TO252 Single N No 40 20 2 0 5 4 85
FE1410 TO252 Single N No 40 20 2 0 14 12 50
FE1606 TO252 Single N No 60 20 3 0 15 5 110
FE1615 TO252 Single N No 60 20 2 0 11 9 60
FE1615B TO252 Single N No 60 20 2 0 11 10 60
FE1630 TO252 Single N No 60 20 2 0 29 26 45
FE1636 TO252 Single N No 60 20 2 0 44 31 40
FE1638 TO252 Single N No 60 20 2 0 28 24 45
FE1638A TO252 Single N No 60 20 2 0 25 21 45
FE1695 TO252 Single N No 60 20 2 0 85 73 18
FE1806 TO252 Single N No 80 20 3 0 15 6 110
FE2251K TO252 Single P No -250 20 -2 0 1200 1000 -5
FE2201K TO252 Single P No -200 20 -2 0 1392 1160 -4
FE2205M TO252 Single P No -200 20 -2 0 600 500 -6
FE2152M TO252 Single P No -150 20 -1 0 180 150 -15
FE2101M TO252 Single P No -100 20 -2 0 144 120 -15
FE2102M TO252 Single P No -100 20 -2 0 195 188 -10
FE2104N TO252 Single P No -100 20 -2 0 36 33 -40
FE2102N TO252 Single P No -100 20 -2 0 26 22 -50
FE2605 TO252 Single P No -60 20 -2 0 6 5 -140
FE2609 TO252 Single P No -60 20 -2 0 11 9 -60
FE2610N TO252 Single P No -60 20 -1 0 72 61 -38
FE2625 TO252 Single P No -60 20 -2 0 25 20 -50
FE2625A TO252 Single P No -60 20 -2 0 25 20 -50
FE2658 TO252 Single P No -60 20 -2 0 57 48 -22
FE2658A TO252 Single P No -60 20 -2 0 61 49 -20
FE2406 TO252 Single P No -40 20 -2 0 6 5 -110
FE2412 TO252 Single P No -40 20 -2 0 13 10 -65
FE2420 TO252 Single P No -40 20 -2 0 21 17 -40
FE2305 TO252 Single P No -30 20 -2 0 7 5 -100
FE2308A TO252 Single P No -30 20 -2 0 11 7 70
FE2309 TO252 Single P No -30 20 -2 0 12 9 -60
FE2311 TO252 Single P No -30 20 -2 0 15 12 -60
FE2315 TO252 Single P No -30 20 -1 0 15 10 -60
FE2317 TO252 Single P No -30 20 -2 0 25 18 -40
FE2320 TO252 Single P No -30 20 -2 0 26 17 48
FE2338 TO252 Single P No -30 20 -1 0 46 33 -26
FE2345 TO252 Single P No -30 20 -2 0 54 35 38
FE2216 TO252 Single P No -20 20 -1 0 18 14 -45
FE1805S TO252 Single N No 80 20 2 0 0 5 7
FE1102M TO252 Single N No 100 20 2 0 0 200 12
FE1805S TO252 Single N No 80 20 2 0 0 5 7
FE3310 TO252-5 Dual N No 30 20 1 0 12 10 32
FE5307 TO252-5 Dual N+P No 0 20 0 0 10 7 65
FE5410 TO252-5 Dual N+P No 0 20 0 0 11 9 10
FE5415 TO252-5 Dual N+P No 0 20 0 0 19 15 50
FE5638 TO252-5 Dual N+P No 0 20 0 0 45 38 35
FA2102M SOP8 Single P No -100 20 -1 0 220 195 -3
FA2152M SOP8 Single P No -150 20 -1 0 240 200 -2
FA2625 SOP8 Single P No -60 20 -2 0 31 24 -9
FA2658 SOP8 Single P No -60 20 -2 0 61 50 -6
FA3102M SOP8 Dual N No 100 20 2 0 200 187 3
FA3102N SOP8 Dual N No 100 20 1 0 17 14 10
FA3104N SOP8 Dual N No 100 20 2 0 48 40 6
FA3106N SOP8 Dual N No 100 20 2 0 0 60 6
FA3108N SOP8 Dual N No 100 20 1 0 96 80 4
FA3615 SOP8 Dual N No 60 20 2 0 18 15 8
FA3638 SOP8 Dual N No 60 20 2 0 32 27 6
FA3695 SOP8 Dual N No 60 20 2 0 0 95 3
FA3860 SOP8 Dual N No 80 20 4 0 85 75 4
FA4101M SOP8 Dual P No -100 20 -1 0 102 85 -5
FA4625 SOP8 Dual P No -60 20 -1 0 30 25 -9
FA4658 SOP8 Dual P No -60 20 -1 0 70 58 -5
FA4670 SOP8 Dual P No -60 20 -1 0 85 70 -5
FA5606 SOP8 Dual N+P No 0 20 0 0 8 6 0
FA5615 SOP8 Dual N+P No 0 20 0 0 16 12 9
FA5638 SOP8 Dual N+P No 0 20 0 0 34 28 7
FA5695 SOP8 Dual N+P No 0 20 0 0 0 95 0
FA1107S SOP8 Single N No 100 20 1 0 0 7 14
FA1108S SOP8 Single N No 100 20 1 0 0 8 14
FA1805S SOP8 Single N No 80 20 2 0 0 5 7
FA1806S SOP8 Single N No 80 20 2 0 0 6 8
FA1808S SOP8 Single N No 80 20 2 0 0 8 10
FA1810S SOP8 Single N No 80 20 2 0 0 10 14
FA3638S SOP8 Dual N No 60 20 1 0 0 30 7
FA5638S SOP8 Dual N+P No 0 20 0 0 0 30 0
FA3638S SOP8 Dual N No 60 20 1 0 0 30 7
FA1107S SOP8 Single N No 100 20 1 0 0 7 14
FA1108S SOP8 Single N No 100 20 1 0 0 8 14
FA1805S SOP8 Single N No 80 20 2 0 0 5 7
FA1806S SOP8 Single N No 80 20 2 0 0 6 8
FA1808S SOP8 Single N No 80 20 2 0 0 8 10
FA1810S SOP8 Single N No 80 20 2 0 0 10 14
FA1102M SOP8 Single N No 100 20 2 0 0 200 2
FA3106N SOP8 Dual N No 100 20 2 0 0 60 6
FA3695 SOP8 Dual N No 60 20 2 0 0 95 3
FA5695 SOP8 Dual N+P No 0 20 0 0 0 95 0
FA5101M SOP8 Dual N+P No 0 20 0 0 120 100 0
FA5102M SOP8 Dual N+P No 0 20 0 0 135 95 5
FA5104N SOP8 Dual N+P No 0 20 0 0 35 33 0
